Low Breakdown Rate Shot Blasting Abrasive
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Product Name: | Ceramic Shot Peening | Shape: | Spherial |
|---|---|---|---|
| True Specific Gravity: | 3.85g/cm3 | Vicker Hardness: | 700HV |
| Usage: | Shot Peening | Loading Port: | Tianjin Or Qingdao,China |
| High Light: | shot blasting abrasive,abrasive shot blasting |
||
Product Description

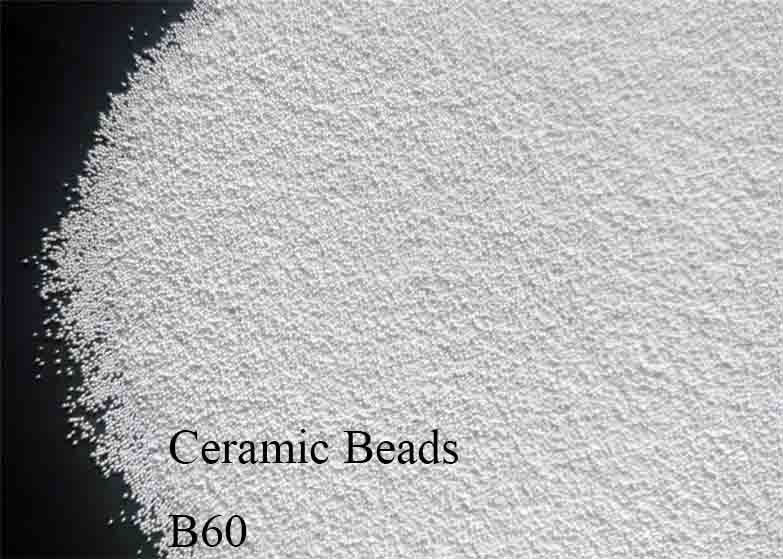

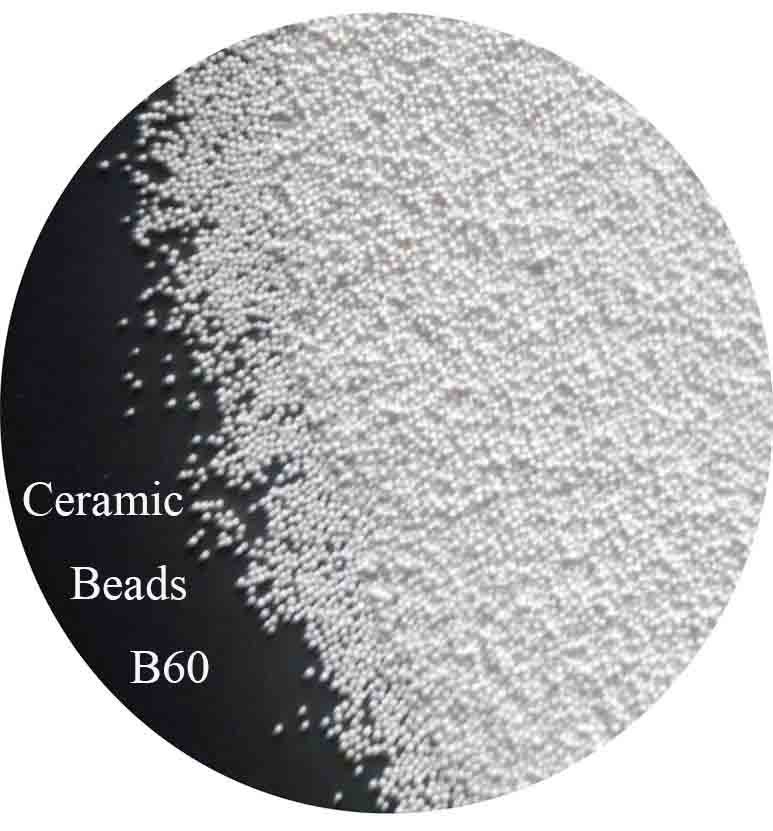

Low Breakdown Rate 62% ZrO2 Zirconium Silicate Ceramic Beads B60 for shot peening
1. Description of Zirconium Solicate Ceramic Beads
Zirconium Silicate Ceramic Beads are spherical and white,it has wide particle size,its
outstanding toughness,hardness,good elasticity ensures it to keep its initial shape after long
time operation.
It is widely used in shot peening application. Compared with the glass beads,its lower breakdown
rate could offer consistent peening effect.
2. Main Technical Index of Zirconium Silicate Ceramic Beads
| Commodity | Main Chemical Index | Main Physical Index |
|
Zirconium Silicate Ceramic Beads (Melting Method) |
ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% |
Vickers Hardness: 700 kg /mm2 |
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3. Product Features of Zirconium Silicate Ceramic Beads
High Hardness and Good Elasticity
Ceramic beads has smooth surface and good elasticity,which ensures it is able to be rebounded in
multi-angles during the peening process,especially suitable for the Light Metal such as aluminium,
aluminium alloy,titanium alloy etc.;
High Efficiency &High Price/Performance ratio
The greater density of ceramic beads makes it higher modulus of elasticity and greater impact energy,
it will reduce shot peening pressure and energy consumption to get the same shot peening effect.
Compared to glass beads, the service life of ceramic beads could be prolonged at least 20- 30 times.
The workpiece treated by ceramic beads will achieve better visual effect and texture as well as lower
toughness compared with the one treated by glass beads.
No Ferrous Contamination
Ceramic Beads contains 60-66% ZrO2,there is no ferrous contamination to the surface of treatment,
its good spherical will also not damage the peening equipment;
No Hidden Silicosis danger
Its lower breakdown rate offers clean working condition to the operator, people will not concern about
the dust and hidden silicosis danger.
4. Main Application of Zirconium Silicate Ceramic Beads
Shot peening in aviation and automotive industries such as automotive aluminium hubs;
Surface finishing for light metal and plastic parts such as 3C products and medical instruments etc.;
Removal the oilstains,oxide scale,and other impurities from various glass- making moulds, rubber tire moulds;
Surface Cleaning for various pipes such as steel pipes,copper pipes etc.,
5. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
7. Why Choose Us?
Professional manufacturer,Providing good products with stable quality & favorable price;
Equipped with the most advanced production line and testing equipments,certificatd by
ISO9001&14001;
Being the stable supplier of Foxconn,Samsung,products has exported to USA,Vietnam,
South Korea,Japan etc.
